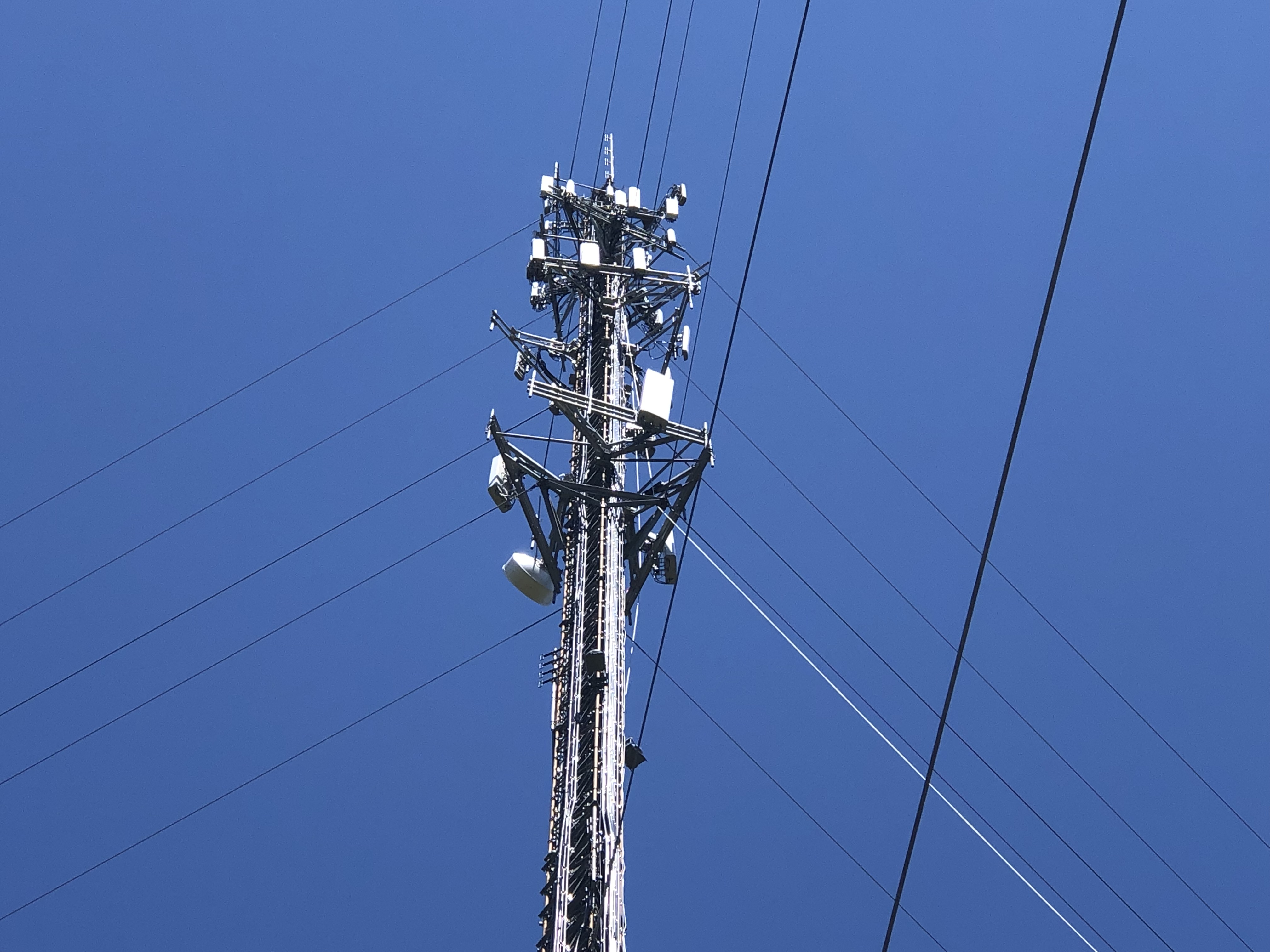

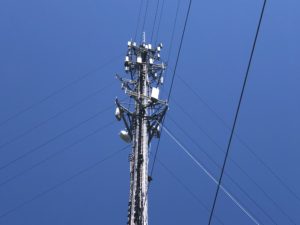

Yup, That’s N4ONC up on top 300 plus feet. New Call Sign, same great signal.
Simply stated here is what we have for our immediate, Oriental/Pamlico area, repeater site status report.
Courtesy of AI4WL’s PARSgram
N4ONC VHF FM Oriental — Operational
N4ONC (old KR4LO) UHF FM Oriental — Operational
NC4ES VHF DMR Arapahoe (NC4ES Network) (147.285MHz+ CC1) — Operational
NC4ES VHF FM Arapahoe (147.285MHz+CTCSS ENC 88.5Hz/DEC 100Hz)–Standby
NC4ES UHF DMR (NC4ES Network) Florence — Operational.
WM3X-ONC VHF C4FM/WIRES-X NODE Oriental (145.530 simplex)– temp non-op
Further instructions and other county wide stations are below.
Oriental, NC Repeater Call N4ONC
Repeater output (your RX): 147.210 MHz
Repeater offset (change in frequency to your TX): +600 Hz (set your TX to 147.810 MHz)
Encode PL: 88.5 Hz (sensed by the repeater and allows you access)
Decode PL: 88.5 Hz (sensed by your radio to open your squelch so you can hear the repeater)
ARAPAHO, NC Call NC4ES Repeater4
As of January 2025 here are some details on the NC4ES Arapahoe machine for the DMR fans. You can get into the NC4ES network from several pathways besides just hailing the repeater (147.285, 147.885 uplink). The analog FM capability is turned off while connected to the network and the world. If needed, such as a Kershaw FM repeater outage, we can turn FM back on in a flash.
All TGs are on TS1
Talk Groups available via TGIF network
TG 31001 NC4ES Cluster
TG 27501 Point to Multi-Point CHAT 1
TG 27502 Point to Multi-Point CHAT 1
TG 407 OBX
TG 410 Eastern NC
TG 31370 NC TAC
Talk Groups via Brandmeister
TG 310001 NC4ES Cluster
Talk Groups via HEARS (VA)
TG 310001 NC4ES Cluster
TG 27501 Point to Multi-Point CHAT 1
TG 27502 Point to Multi-Point CHAT 2
Connect to NC4ES via EchoLink
NODE 919805 NC4ES Cluster: Links EchoLink Node 919805 (NC4ES-L) Lights up all repeaters in the network, including Arapahoe and Pamlico DMRs.
The Arapaho machine uses CTCSS, or PL tones, on the analog side to determine which mode a user intends. If it hears a transmission using 88.5 PL, it repeats in analog FM mode, services the conversation, stays in the mode for twenty seconds, then drops the mode until reset by a new call. If it hears a digital signal without a PL, it switches to DMR mode, etc. Analog FM settings of your radios should be as follows for compatibility:
Repeater output (your RX): 147.285 MHz
Repeater offset (change in frequency to your TX): +600 Hz (set your TX to 147.885 MHz)
Encode PL: 88.5 Hz (sensed by the repeater and allows you access)
Decode PL or “Tone Squelch”: 88.5 Hz (sensed by your radio to open your squelch so you can hear the repeater)
IT IS IMPORTANT THAT YOUR ANALOG FM RADIO BE SET UP WITH THE DECODE PL. WITHOUT IT, YOU WILL HEAR DMR USERS’ BUZZSAW-LIKE SIGNALS WHICH CAN BE ANNOYING!
DMR users’ channel setup should follow these settings:
RX: 147.285 MHz
TX: 147.885 MHz
CC: 1
Channel Type: D-digital
DMR mode: repeater (not simplex)
www.repeaterbook.com
Quick link to the North Carolina list http://www.repeaterbook.com/repeaters/index.php?state_id=37#sthash.GGRGScvM.MdRmqJx5.dpbs.
Stolen gear registry here.
An excellent reference. They say with justification, “Welcome to the best resource for amateur radio repeater information in the United States and Canada. We have the most up-to-date amateur radio repeater listings (updated by you, our admins, and repeater coordinators). This site is different than others because we use local admins that collect repeater data. No repeater directory can be 100% up-to-date, but we believe this one is more up-to-date and comprehensive than any other you can find. Visitors are invited to update and add listings. You can also rate and comment on the repeaters.”
Other repeaters of local interest follow, however for current status, additions or corrections please use the Repeater Book link above.
SIMPLEX
Nationwide
146.520
KF4IXW
Grantsboro
145.230/-0.6/85.4
WO3F
New Bern
442.075/+5/100
KF4IXW
Grantsboro
444.875/+5/85.4
